Resistors and Can-Bus Decoders for HID and LED Lights.

The resistors and decoders are for when you need a load or resistance to the value of a filament in a halogen bulb. The decoders and resistors are used when you upgrade your halogen lights to led or hid and you either get an error message on the dashboard or your high beam light won't come on. The decoders also are EMC (Electro Magnetic Compliant) so they can be used for Anti-Interference in radios when you get static from light bars, driving lights, or hid lights.

Resistors.

The resistors come in 25w or 50w and are used to create more load in the circuit for if you get an error message or your high beam light won't come on. The 25w resistors are usually used for indicators or stop and tail lights to give it more load so they blink at the correct rate, or need the load to actually be able to switch the lights on. The 50w resistors are used for headlights when you need to increase the load or resistance that is in the filament of a halogen bulb, when you have upgraded them from halogen to led or hid, and the high beam won't come on, or the computer won't switch the lights on.

Can-Bus Decoders

The can-bus de-coders also mimic the resistance of a filament in a halogen bulb when you upgrade them from halogen to hid or led. The de-coders are a bit different to the 50w resistors as they are not analogue, but electronic. This can be helpful for sophisticated computers when they need a "pulse" type signal. The can-Bus decoders send a signal to the computer so that it recognises the lights and enables the system to operate correctly.

Radio Interference, Anti-Static Properties

The decoders also have anti-interference properties for when you buy HID or LED driving lights, light bars, work lights, or light kits, fit them, and then realize you are getting static or radio noise interference. The decoders eliminate this problem by isolating the circuit and not allowing the earthing problems caused by some of these lights. The EMC (Electro Magnetic Compliant) decoders are an easy plug and play fix to stop radio interference after fitting lights to your vehicle.

Indicator, Stop/Tail, and Wedge Bulb Decoders

If you fit led Stop and Tail light bulbs or Parkers and Indicators, you can get problems with the computer or load problems. The decoders will fix this problem. We have a wide range of bulb types available - Bayonet - BA15S, BAU15S, BAY15, Wedge - 7440, 7443, 3156, 3157, T10, T15, T20.

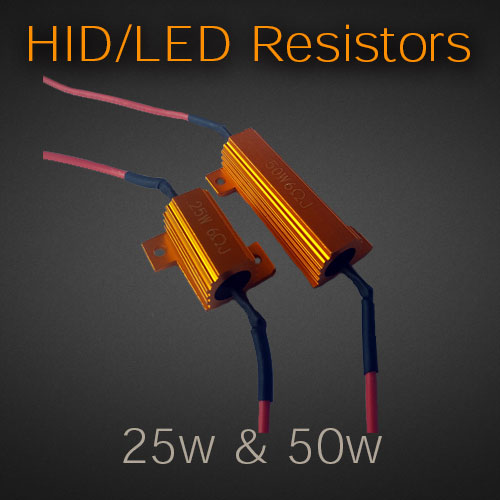

50w and 25w Resistors

50 Watt and 25 Watt Resistors for Lights

Features
Specifications

50 Watt and 25 Watt Resistors for Headlights, Indicators, and Stop/Tail Lights.

The 50w resistors are used for headlights and will put load on the circuit for vehicles which either have a high beam light, or where the computer operates the lights and needs the load to recognise them.
The 25 watt resistors also increase the load when you change your standard halogen indicator or stop/tail lights to led. The resistance will enable the circuit to operate properly, especially in the case of indicators blinking irregularly or where computers control the operation of the lights.

Wattage: 25w and 50w.

Voltage: 12v or 24v.
Amps: 2.5 amps 25w, 5.5amps 50w @12v.
Connections: Raw.
Warranty: 1yr Australian Warranty.

Buy Resistors Safely Online with Paypal Today!

50w and 25w Resistors
Price Includes GST and Overnight Express Delivery Australia.

Can-Bus Decoders

Features
Specifications

Error Canceling Can-Bus Decoders, and Anti- Radio Interference Units for Headlights and External Driving Lights or Light Bars.

Can-Bus decoders or error canceling devices are used for vehicles where the computer controls the lighting system for the headlights, or you are getting interference through the radio.
The decoders send a pulse feedback signal to the computer and allow it to recognise the headlights and the anti radio interference properties protect the system and are EMC compatible.
Some headlights will not switch on or will give you an error

Applications: H1, H3, H4, H7, H8/9/11, HB3 9005, HB4 9006, HB1 9004, HB5 9007. Work Light, Driving Lights, and Light Bars, bar light. Bayonet - BA15S, BAU15S, BAY15, Wedge - 7440, 7443, 3156, 3157, T10, T15, T20.
Voltage: 12v/24v compatible.
Type: Pulse electronic and Anti-Interference.
Connections: Light Bar Decoders/Anti Interference units have Deutsch Connectors. All the others have their relevant connectors, H4, BA15S etc....
Certification: EMS, RoHs, CE.
Warranty: 12 Month Australia Warranty.

Buy the Decoders Safely with Paypal Today!

Can-Bus Decoders
Price Includes GST and Delivery Costs Worldwide.
