LED Driving Lights and Spot Lights

If you want the best advice from a company with 20+ years experience in the industry you have come to the right place. Pro Vision Lighting & Electrical, (Arco Imports Pty Ltd), has been around since the beginning of LED, (Light Emitting Diode), technology for the automotive off-road 4x4 industries and we can give you unbiased information about choosing the best product for your individual needs.

There are a few aspects to go over before selecting an LED spotlight or LED driving light for your 4WD, truck, car, machine, boat, or other vehicle. Listed below are a few things to consider to ensure you get the best product for your needs. We also guarantee all our driving lights with a 5 year warranty as an assurance of high quality and superior performance.

LED VS HID VS HALOGEN.

Halogen will give you around 350hrs of life, HID around 3500hrs and LED 35,000 to 50, 000hrs of life. This means LED is low maintenance, and if you get a quality set, they will last for years. In terms of brightness, LED has come a long way, and from our experience, clients usually want 400-600mtrs of distance, and enough spread to spot those critters who like to jump in front of cars. Most medium range to high range LED driving lights will give you this distance, all our 140w to 320w LED driving lights will give you this plus performance.

WHATS THE DIFFERENCE BETWEEN SPOT, PENCIL, FLOOD, WIDE BEAM, EURO BEAM, DRIVING BEAMS, COMBINATION BEAM?

Most LED Driving Lights are a combination beam of distance and width, or between 15° to 30° in the one light.
Most of the “Flood” beam, wide beam, spread beam in LED use a corrugated PMMA lens cover and give you a 45° to 65° variance. These flood covers come as free extras when you buy our 140w driving light, and the 320w driving light.
The latest lenses are either an optical lens, a parabolic reflector, or a Hybrid optical + parabolic reflector all-in-one (our 320w is a Hybrid).
An optical lens will give you a tighter beam and more distance, and slightly limit light efficacy, or how much light gets through the lens and onto the road.
A deeper dish parabolic lens (open reflector cup style) will also give you a long distance + width.
Directors Favorites.
1. Black Diamond 7” 135w. 9x 15W CREE LED’s in a Deep Dish Parabolic Reflector. 1 Lux @ 800m (Spot Beam with some wash to the sides). These also come with clear covers with a partial flood lens corrugation to add width when off-road. The Perfect LED Spot Light For Cars, Trucks, and SUV's, Great for highways, and heavy duty for off-road 4x4 driving.
2. 7” 140w. 28x 5w High Intensity CREE XTE LED's in a Deep Dish Parabolic Reflector. (Driving Beam with some wash to the sides). These come with a free set of clear covers + a free set of 45° flood covers. Spot + Flood Beam for distance and width. 1 Lux @ 600m. Perfect 7" Driving Light with full adjustable pendulum style mounting brackets.
3. 9” 370w. 37x 10W CREE XM-L2 LED’’s in a Hybrid Deep Dish Parabolic Reflector + Optical Lens. 1 Lux @ 1200m. Hybrid Spot Beam for distance, and free 45° flood covers for off-road. and width.
One other thing. They type of LED that is used has a significant part to play in how it reacts to that particular lens. For example, some LED chips are flat, and some are an optical lens, our LED driving lights use a combination of advanced lens engineering to suit the LED chip that is used in them and give you the best outcome for each driving light size, type, and style.

IP67 or IP68 WEATHERPROOF DRIVING LIGHTS.

All of our LED driving lamps are tested for high vibratory applications and maximum water and dust protection. If you don't get a high quality driving light, they can literally rattle and shake apart internally and externally, and water and dust can get into the lights and cause corrosion. The Pro Vision LED Driving Lights are protected against invasion of water from high pressure hoses and have an IP rating of IP67 and IP68 which is the highest ingress rating for general off-road lighting needs, and have the ability to be submerged in water over up to, and over, 1mtr in depth. The IP67 and IP68 rating also protects the lights in high dust areas and they all carry a 5 year warranty for your peace of mind.

CREE, PHILIPS, and BRIDGELUX SPOT LIGHTS FOR CARS AND 4WD'S.

The type of LED used in spot and driving lights is important as they must produce a high brightness and be able to stand the test of time. We use the USA made CREE and Bridgelux LED's and the Philips LED's in our spot and driving lights as they can be driven hard to produce the most amount of light, and are manufactured to be able to stand high temperatures for long periods of time.

6000k or 4300k LED DRIVING LIGHTS.

All the LED driving lights produce a colour temperature of 5500k-6500k pure white. The white light of an LED should not be compared to a white light of HID. HID produces a lot of glare at these colour temperatures, whereas LED lights at 5500k-6500k are low glare and high brightness. Scientists tell us that our eyes are best adapted to midday sunlight so all our LED lights produce a light colour temperature closest to midday sunlight. We have a colour chart to show you the range here -> LED Colour Temperatures

24v and 12v LED SPOT LIGHTS for CARS, TRUCKS, FARMING MACHINERY, MINING EQUIPMENT, AND BOATS.

12v and 24v compatibility driving lamps are standard across the entire range. This ensures that the lights have the versatility of being able to be fitted on both 12 volt and 24 volt applications. The Pro Vision range are a multi-volt 12v/24v compatible lights for most cars, trucks, motorcycles, tractors, mining machinery, and boating applications.

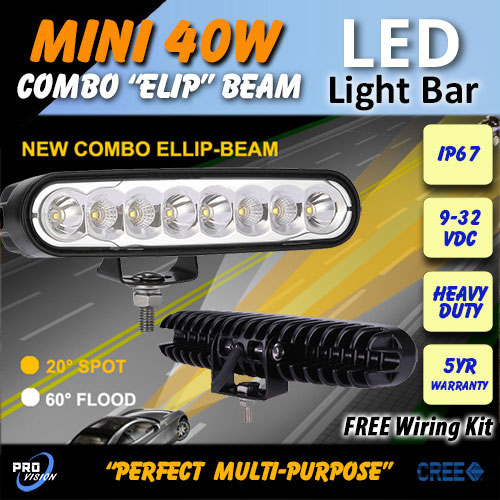

LED Driving Light - 40 Watt

Heavy Duty 6 Inch 40 Watt LED Driving Light Features

Heavy Duty 6 Inch 40 Watt LED Driving Light Size

Heavy Duty 6 Inch 40 Watt LED Driving Light Illumination

Features
Specifications

6 Inch 40w LED Driving Light/Light Bar with Combination "Elip" Beam.

LED's: USA Made CREE.
LUMEN: 4000lm.
LUX: 1lux@200mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Combination Beam 20° Spot + 60° Flood.
WEATHER PROTECTION: Now IP68 Water & Dust Proof.
CONNECTION: Waterproof connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Stainless Steel.

SIZE: 6" - W165x H38x D60mm.
POWER: 40w Per Light.
LIGHT EFFICACY: 98% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 3.6A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 1kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy The 6" 40W LED Driving Lights Safely Online Today.

LDL-6-40
Price Includes GST and Express Delivery Costs Worldwide.

LED Driving Light - 60 Watt

LED Driving Light - 5 Inch 60 Watt - Heavy Duty

Features
Specifications

5 Inch 60w LED Driving Light with Combination Beam Spot/Flood Lens Covers.

LED's: USA Made CREE.
LUMEN: 4500lm.
LUX: 1lux@250mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Spot Beam + Combo Spot/Flood Covers.
WEATHER PROTECTION: IP68 Water & Dust Proof.
CONNECTION: Waterproof connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Stainless Steel.

SIZE: 5" - W126x H150x D100mm.
POWER: 60w Per Light.
LIGHT EFFICACY: 97% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 4A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 1.5kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 5" 60W LED Driving Lights Safely Online Today!

LWL-5-60W
Price Includes GST and Express Delivery Costs Worldwide.

LED Driving Light - 80 Watt

LED Driving Light 5 Inch 80 Watt Professional Grade

Features
Specifications

5 Inch 80w LED Driving Lights.

LED's: USA Made CREE.
LUMEN: 8000lm.
LUX: 1lux@300mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Spot Beam + Clear Covers and Flood Covers.
WEATHER PROTECTION: IP68 Water & Dust Proof.
CONNECTION: Waterproof Deutsch connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Heavy Duty Black Powder Coated Stainless Steel.
VOLTAGE: 9-32V DC, (12V/24V Compatible).
LIFESPAN: 50,000hrs.
WARRANTY: 5yr Limited Australian Warranty.

SIZE: 5" - W130x H158x D90mm.
POWER: 80w Per Light.
LIGHT EFFICACY: 98% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 5.5A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 2kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 5" 80W LED Driving Lights Safely Online Today!

LDL-5-80
Price Includes GST and Express Delivery Costs Worldwide.

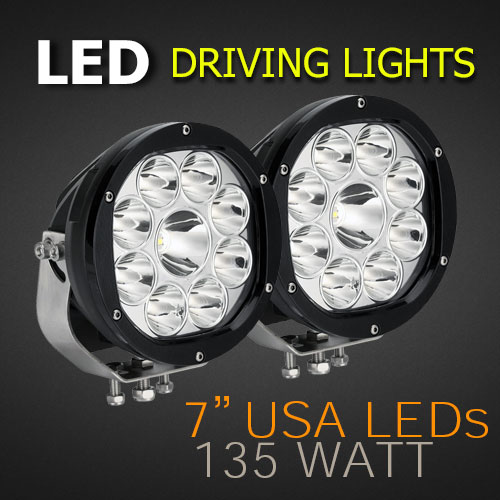

BLACK DIAMOND 7" LED Driving Lights

Features
Specifications

Black Diamond LED Spot/Driving Lights.

Our Signature BLACK DIAMOND 7 Inch are a Premium LED Spot/Driving Light that outshines everything in its class.
Powered by Custom Engineered 15W USA Made LUMINUS LED's, the BLACK DIAMOND produce 1LUX@800mtrs making it the best priced 7 inch spot light we have seen this year.
Ingress Rated at IP68 for full dust and water proofing, and it's stainless steel fully adjustable heavy duty brackets, ensures you can take them off-road on 4wd adventures and know they will last the rigors of outdoor life.

LED's: Specially Designed USA Made LUMINUS LED's, 170lm/Watt.
LUMEN: 22,950lm.
LUX: 1lux@800mtrs.

SIZE: 7" - W178x H194x D105mm.
POWER: 135w Per Light.
BRIGHTNESS: 22,950lm.
LIGHT EFFICACY: 98% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 8.5A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 3kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 7" 135w LED Driving Lights Safely Online Today!

LDL-7-135
Price Includes GST and Express Delivery Costs Worldwide.

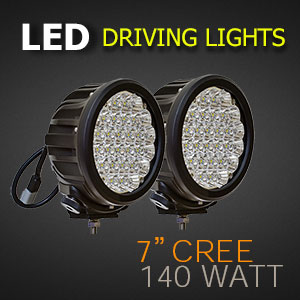

LED Spot or Driving Light - 140 Watt

LED Driving Light 7 Inch 140 Watt | Pro Grade

Features
Specifications

7 Inch 140w LED Driving Lights.

LED's: USA Made CREE XTE LED's.
LUMEN: 11,600lm.
LUX: 1lux@500mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Driving Beam + Flood Covers.
WEATHER PROTECTION: IP68 Water & Dust Proof.
CONNECTION: Waterproof Deutsch Connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Heavy Duty Stainless Steel.
VOLTAGE: 9-32V DC, (12V/24V Compatible).
LIFESPAN: 50,000hrs.
WARRANTY: 5yr Limited Australian Warranty.
DELIVERY: FREE Air Express Worldwide 5-7 Business Days.

SIZE: 7" - W180x H220x D120mm.
POWER: 140w Per Light.
LIGHT EFFICACY: 98% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 8.5A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 3.5kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 7" 140W LED Driving Lights Safely Online Today!

LDL-7-140
Price Includes GST and Express Delivery Costs Worldwide.

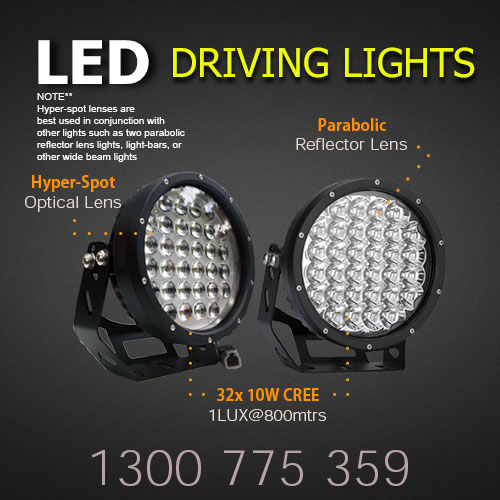

LED Spot and Driving Light - 320 Watt

LED Driving Lights 9 Inch 320 Watt Pro Series

Features
Specifications

9 Inch 320w LED Spot Lights or Driving Lights.

LED's: USA Made CREE XM-L2.
LUMEN: 28,800lm.
LUX: 1lux@800mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Hyper-Spot Optical Lens or Parabolic Reflector Lens.
WEATHER PROTECTION: IP68 Water & Dust Proof.
CONNECTION: Waterproof Deutsch Connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Heavy Duty Black Powder Coated Stainless Steel.
VOLTAGE: 9-32V DC, (12V/24V Compatible).

SIZE: 9" - W218x H225x D105mm.
POWER: 320w Per Light.
LIGHT EFFICACY: 95-98% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 18A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 5kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 9" 320w LED Driving Lights Safely Online Today.

LDL-9-320
Price Includes GST and Delivery Costs Worldwide.

LED Driving Light - 370 Watt

LED Driving Lights 9 Inch 370 Watt | Brightest

Features
Specifications

9 Inch 370w LED Spot Lights or Driving Lights.

LED's: USA Made CREE XM-L2.
LUMEN: 33,300lm.
LUX: 1lux@900mtrs.
LED COLOUR TEMPERATURE: 5700K Pure White.
LENS: Virtually Unbreakable Polycarbonate Lens.
BEAM TYPES: Unique Multi-Directional 5D Hybrid Lenses.
WEATHER PROTECTION: IP68 Water & Dust Proof.
CONNECTION: Waterproof Deutsch Connectors.
HOUSING: High Grade Aluminum Housing.
MOUNTING BRACKETS: Heavy Duty Black Powder Coated Stainless Steel.
VOLTAGE: 9-32V DC, (12V/24V Compatible).

SIZE: 9" - W220x H240x D95mm.
POWER: 370w Per Light.
LIGHT EFFICACY: 95% Light Transmittance.
VIBRATION RESISTANCE: 15G rms 24-2000H.
SHOCK RESISTANCE: 60g.
VOLTAGE PROTECTION: Reverse Polarity Protection.
CURRENT DRAW: 22A@12v.
WORKING TEMPERATURE: -40℃~+80℃.
WEIGHT: 5kg/pc.
CERTIFICATION: EMC, CE, RoHs.
DELIVERY: Air Express Worldwide 5-7 Business Days.
WARRANTY: 5yr Limited Australian Warranty.

Buy 9" 370W LED Driving Lights Safely Online Today!

LDL-9-370
Price Includes GST and Express Delivery Costs Worldwide.
