LED Headlight Bulbs for Cars, Trucks, and Motorcycles.

Pro Vision Lighting & Electrical has been testing and supplying LED Headlight Bulbs since the first ones entered the market a number of years ago. Heading into 2019 we have some new releases that we are excited about. The latest additions are the X8 Pro PLUS and the Quick-Fit LED Bulbs.

The X8 Pro PLUS are a new upgraded version of the X8 Pro, with some great new features. The X8 Pro PLUS are now Brighter, Have better optical parameters, better led's, a longer life, are more compact, and are more versatile than ever before.

The Quick-Fit are a new addition for an "all-in-one" led globe for headlights, and they are only just now powerful enough to be considered an easy fit solution to give you brighter lights with a long led globe lifespan.

The Pro Vision Lighting range of led upgrade bulbs for headlights are carefully selected so that you get a high quality product at the lowest possible price. Below are a few tips to selecting which bulb is best suited for your vehicle and application.

The first thing to look out for is the the amount of room from where the bulb seats into the housing to the back of the dust cover. On some models, there is not much room, and a lot of led bulbs are to bulky to fit in properly (such as JW Speaker led bulbs). The latest models of the Pro Vision range of led bulbs are compact at the back of them so are easy to fit. The X8 Pro PLUS for example is only 34mm from where it sits in the housing to the back of the bulb, giving you plenty of room to put the dust cover back on.

Is your vehicle Can-Bus Controlled? Can-Bus means that the computer controls when the lights turn on and off. On some models, when you get in the car and turn the ignition on, the lights come on automatically, and for these vehicles, you may need to get can-bus decoders. All our Can-Bus decoders are free with our led kits, you just need to tell us you need them. On the X8 Pro PLUS led kits, they will work on 95% of vehicles without you having to get additional can-bus decoders If you are unsure, give us a call or send us an email and we can go over it with you.

LED Headlight Bulb Adapters. Bulb adapters are plastic or metal retainers that the original halogen bulb sits into first before you put the bulb in the headlamp. When you get an led headlamp bulb that has a bulb adapter, you need to get led bulb adapters with the kit. Again, we send them out for free with the kits, we just need to know if you need them or not.

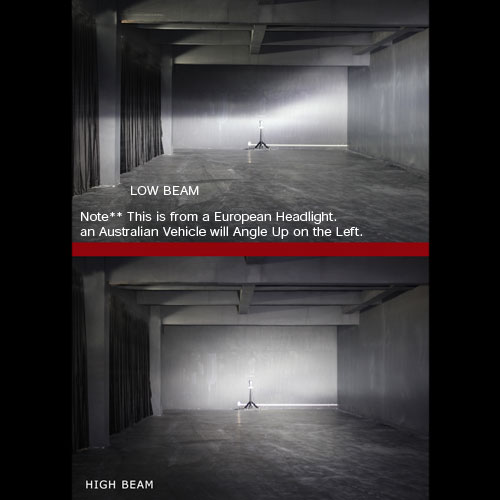

Beam patterns and adjustments. Most led bulbs are static, in that you can't adjust the bulb itself, you can only adjust the headlamp up and down and left and right. Our latest series of upgraded led bulbs have the ability for you to fine tune the beam pattern so you can get the best cut-off points and beam angles to suit your driving needs.

LED Chips. We here a lot about Philips Led's or Cree led's in headlight bulbs, but to be on top of the game you need to get the latest releases of led lighting technology that is out there today. Led technology affects how the beam pattern will react with your headlamp to correctly project the light forward out of the lens. The Pro Vision Lights latest led bulb upgrades have led's specifically built for headlamps, whereas a lot of manufactures simply use either fake led's, that are not OEM, or do not have the engineering capability to seat the led's correctly so you get the best result. Simply sticking high power led's on the end of the bulb simply will not benefit the illumination and optics required to give you the best lighting effect.

If you require more specific information, or professional advice, please give us a call. All our kits are backed by an Australian warranty for customer assurance, and we have over 20yrs automotive industry experience.

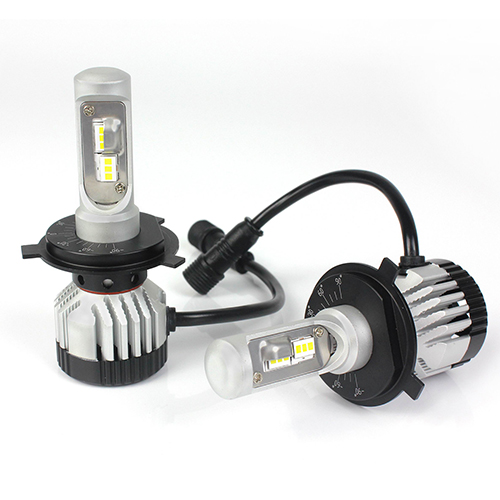

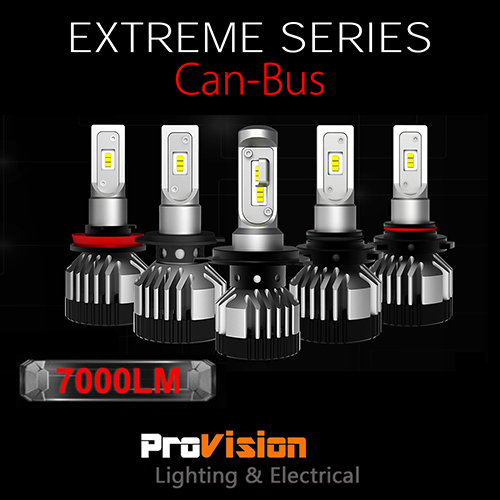

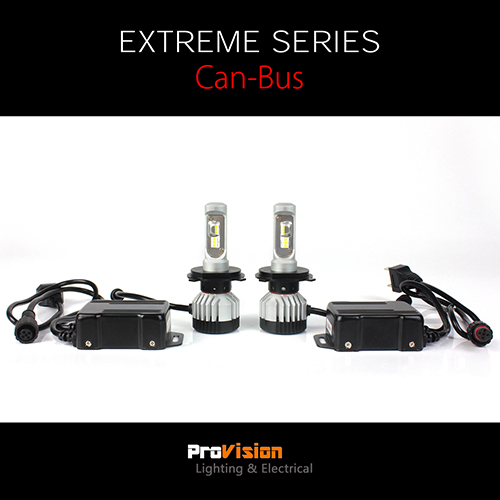

EXTREME Series LED Headlight Bulbs

Features
Specifications

The Brightest LED Headlight Bulbs.

Putting out an enormous 7000 Lumen!!, (Low Beam 7000lm, High Beam 7000lm, 14000lm high and low beam), The Extreme Series are the brightest available LED Headlight Bulbs coming into 2019 that actually work properly!!

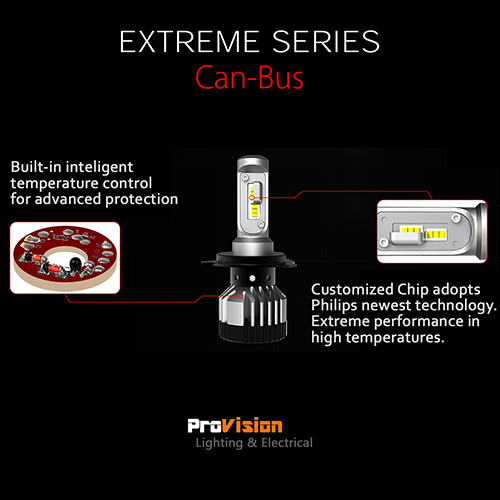

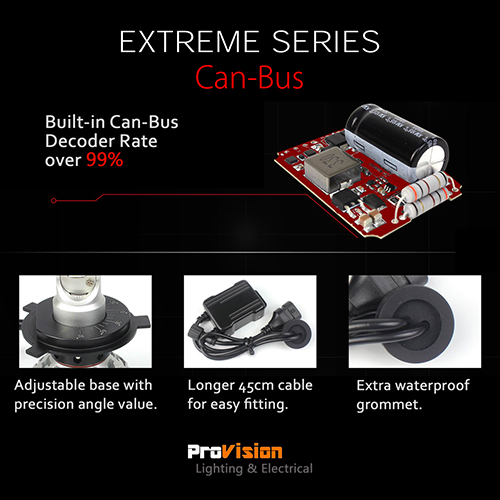

Built in Can-Bus decoders makes the Extreme series a great choice for car enthusiasts and automotive performance specialists as they will work effectively on older vehicles or the latest model Audi.
We have tried technically brighter bulbs lately, but the extreme series are engineered to react perfectly in both reflector style, and projector style headlights, making them our favorite in the "Brightest LED Headlight Bulb" range.
Backed by a 5yr Australian guarantee, the Extreme Series

PART NUMBER: LHK-EXT.
LED's: Custom Made Lattice HML3 LED's.
LED QUANTITY: H/L 24pcs, Single Beam 12pcs.
BRIGHTNESS: L/7000lm H/7000lm.
POWER: 50w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:3.1A±0.2A, H:3.1A±0.2A.
WEATHERPROOF: IP65 Water and Dust Proof.
COLOUR OPTIONS: Pure White.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8, H9, H10, H11, HB3 9005, HB4 9006, HIR2 (9012), H16, 9004 HB1 H/L, 9007 HB5 H/L, H13 H/L, PXS24W, 5202, PSX26W, P13W.
KIT CONTENTS: 2x bulbs, 2x Drivers, Accessories, 1x Manual.
DELIVERY COSTS: Price Includes International Air Express

Buy The EXTREME PRO LED Kit Safely Online Today!

LHK-EXTREME Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

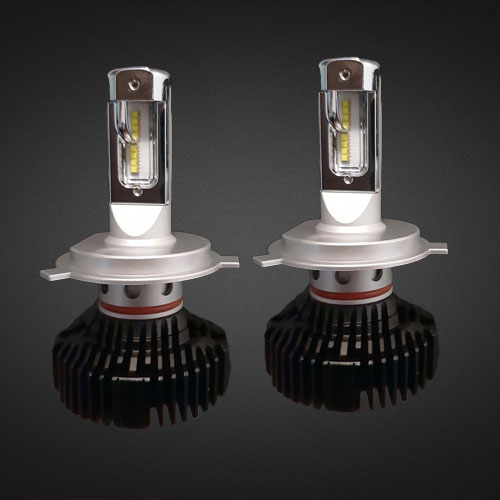

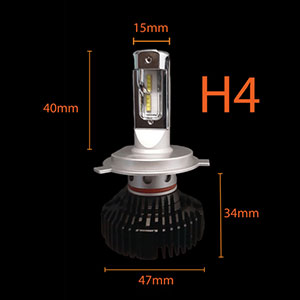

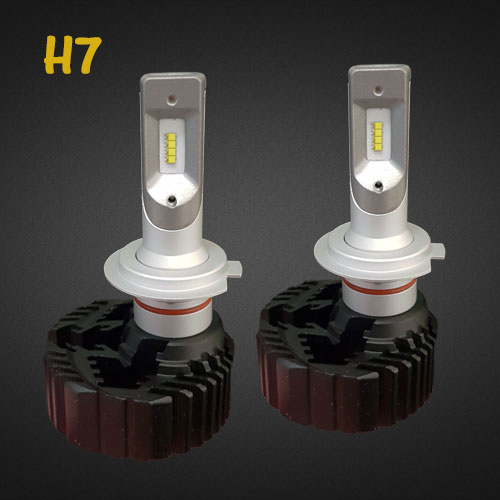

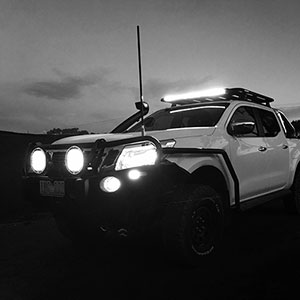

X8 Pro PLUS LED Headlight Globes

Features
Specifications

Pre 2019 Release | X8 Pro PLUS LED Headlight Bulb Kits.

Directors Pick: The most advanced led headlight bulbs available right now.

Application: Cars, Trucks, and Motorcycles. The New X8 Pro Plus have some Unique Features which enable it to be used on normal reflector style headlights and also projector style headlights. It will work on 99% of vehicles with can-bus controlled lighting, and for the other 1% we have the latest can-bus easy-fit plug in decoders for even late model 2018 Porsche, Mercedes, and Audi. The H7 bulb in the X8 Pro Plus has a unique off-set base, and is fully rotatable for certain small headlight housings where getting led bulbs in is almost impossible. The X8 Pro Plus are the most dynamic and powerful led headlamp bulb we have tested to date.

Part Number: LHK-X8PROPLUS.
Cooling: Fan-less. Aviation Grade Aluminum with Advanced Heat Dissipation and Conduction.
LED's: Custom USA Made CREE LED's.
LED Quantity: H/L Bulbs 16x Pieces, Single Beam 8x Pieces.
Brightness: L/4500lm H/4500lm.
LED Location: Double Sided with Precision Placement for Maximum Light Projection, Even Beam Spread, and Accurate Cut-off Points.
Colours: Pure White kelvin rating with advanced "eye-to-road" optical clarity for clearer, better vision at night.
Power: L/24w H/24w.
Current Draw: L:2.0A±0.2A, H:2.0A±0.2A.
Voltage: 9-32v, 12v/24v compatible.

Buy The X8 Pro PLUS LED Bulbs Safely Online Today.

LHK-X8PRO-PLUS Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

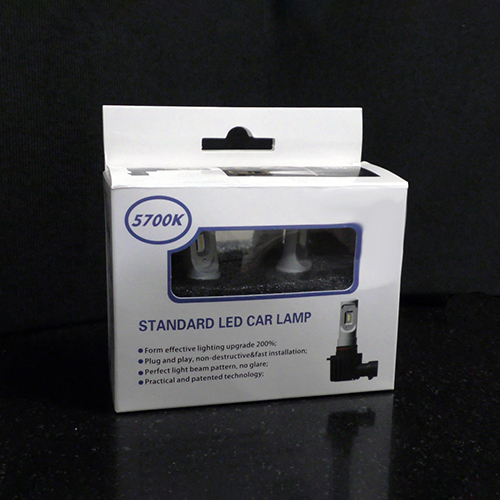

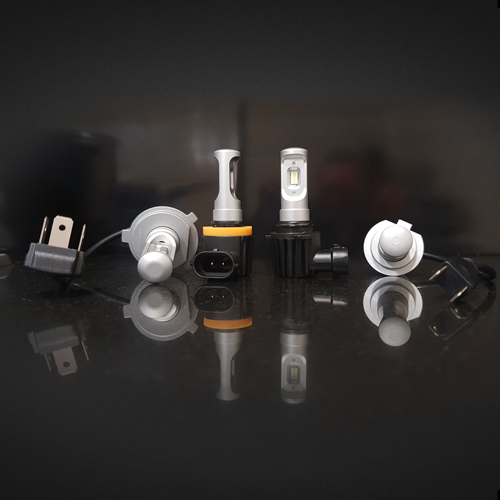

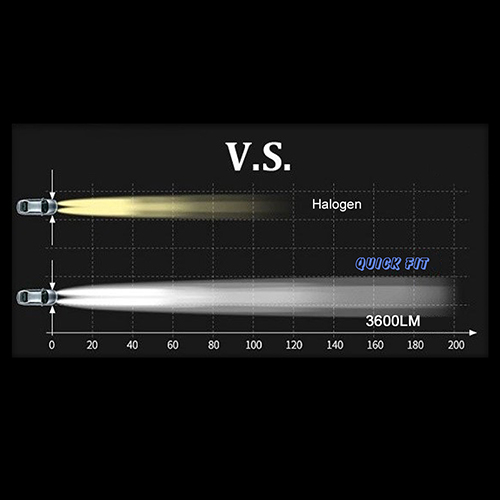

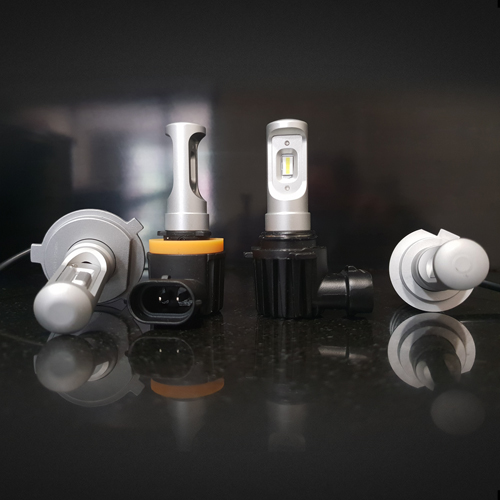

Quick-Fit LED Headlight Globes

Quick-Fit LED Bulb Replacements for Headlamps

Features
Specifications

Quick-Fit LED Headlight Globe Kits.

Application: Quick and easy to fit. Perfect for low beams and areas where there is not much space.
Fan-Less: Fan-less and Non-Polarity Sensitive, (for positive and negatively switched vehicles).
DRIVER: Internal Driver.
COOLING: Advanced Fan-Less Conduction Technology for Long Life and LED Integrity. Aviation Grade 6063 Aluminum for Maximum Heat Dissipation and Cooling Efficiency.
BEAM: Precision engineered for reflectors or projector lights.
ORIENTATION: Double Sided LED's for brightness and all-round performance.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight Connector.

PART NUMBER: LHK-Quick-Fit.
LED's: Custom Made High Powered LED's.
LED QUANTITY: H/L 4x sets, Single Beam 2x sets.
POWER: L/16w H/16w.
VOLTAGE: 6-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: 1.2A±0.1A @ 13.6VDC.
WEATHERPROOF: IP68 Water and Dust Tight.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8/H9, H11, HB3 9005, HB4 9006, H10, 9012 (HIR2).
KIT CONTENTS: 2x bulbs.
DELIVERY COSTS: Price Includes Overnight Express 1-2 Working Days in Australia or International Air Express Delivery

Buy The Quick-Fit LED Bulbs Safely Online Today.

LHK-Quick-Fit Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

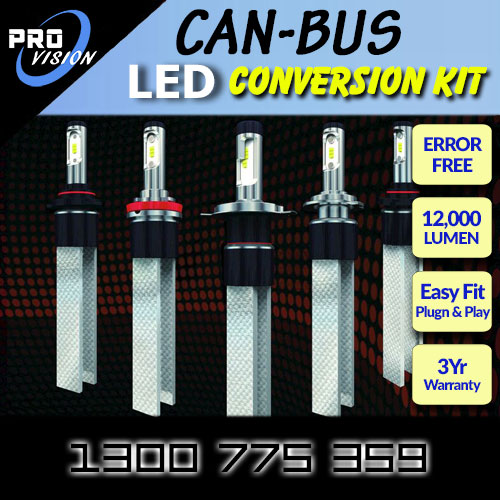

Can-Bus PRO LED Conversion Kits

Features
Specifications

Can-Bus PRO LED Upgrade Kits with a 5yr Warranty.

Application: For advanced electronic systems such as BMW, Mercedes, Audi, and VW. Built in Can-Bus Decoders for auto light systems (Can-Bus Controlled), and also suitable for non can-bus controlled vehicles. Perfect Vision & a 5yr Warranty!
DRIVER: Built-In Can-Bus Driver. RF Free, EMC.
COOLING: Advanced Fan-Less Conduction Technology for Long Life and LED Integrity. Aviation Grade 7075 Aluminum for Maximum Heat Dissipation and Cooling Efficiency.
BEAM: 360° Advanced Optical Technology.
ORIENTATION: Double Sided LED's for precision optics.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight Connector.
BRIGHTNESS: Super Bright, But with Low Glare – Up to 12,000 Lumen, L/6000lm H/6000lm, (3000lm per single

PART NUMBER: LHK-CAN-BUS.
LED's: Philips Luxeon Z ES Gen2, (125lm/w)
LED QUANTITY: H/L 10pcs, Single Beam 6pcs.
POWER: L/30w H/30w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:2.4A±0.2A, H:2.4A±0.2A.
WEATHERPROOF: IP68 Water and Dust Tight.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8/H9, H11, HB3 9005, HB4 9006, H10, 9012, H15, H16, HB1 9004, HB5 9007, H13 H/L, PXS24W/5202, PSX26W/P13W.
KIT CONTENTS: 2x bulbs with Drivers, 1x Manual.
DELIVERY COSTS: Price Includes Overnight Express 1-2 Working Days in Australia or International Air Express Delivery

Buy Can-Bus Pro LED Kit Safely Online Today!

LHK-CANBUS
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

X8 Pro LED Conversion Kits

Features
Specifications

Overview for the X8 PRO LED Kits.

Application: Best all-round and highest quality. Philips LED's, advanced fan-less technology, external micro-drivers for stability, compact design. Best Performance!
BULB SIZES and Available Types HERE.
Fan-Less: Fan-less and Non-Polarity Sensitive, (for positive and negatively switched vehicles).
DRIVER: External Micro-Driver.
COOLING: Advanced Fan-Less Conduction Technology for Long Life and LED Integrity. Aviation Grade 6063 Aluminum for Maximum Heat Dissipation and Cooling Efficiency.
BEAM: 360° Fully Adjustable Beam Rotation Technology.
ORIENTATION: Double Sided LED's for precision optics.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight Connector.

PART NUMBER: LHK-X8PRO.
LED's: Philips Luxeon Z ES Gen2, (125lm/w)
LED QUANTITY: H/L 16pcs, Single Beam 8pcs.
POWER: L/25w H/25w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:2.0A±0.2A, H:2.0A±0.2A.
WEATHERPROOF: IP67 Water and Dust Tight.
COLOUR OPTIONS: Pure White + 2x Included "DIY" Gold and Blue Colour Films.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8/H9, H11, HB3 9005, HB4 9006, H10, 9012, H16, PXS24W/5202, PSX26W/P13W.
KIT CONTENTS: 2x bulbs, 2x Colour Film, 1x Manual.
DELIVERY COSTS: Price Includes Overnight Express 1-2 Working Days in Australia or International Air Express Delivery

Buy The X8-PRO LED Kit Safely Online Today!

LHK-X8PRO
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

The ATOM LED Conversion Kits

Features
Specifications

Overview for The ATOM PRO LED Kits.

Application: Excellent for Motorcycles or headlights with very little room. Philips LED's, Built-In Drivers and Advanced Fan-less Technology. Compact and Bright!
BULB SIZES and Available Types HERE.
Fan-Less: Fan-less and Non-Polarity Sensitive, (for positive and negatively switched vehicles).
DRIVER: Internal Built-In Driver. RF Free, EMC.
COOLING: Advanced Fan-Less Conduction Technology for Long Life and LED Integrity. Aviation Grade 6063 Aluminum for Maximum Heat Dissipation and Cooling Efficiency.
BEAM: 360° Fully Adjustable Beam Rotation Technology.
ORIENTATION: Double Sided LED's for precision optics.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight Connector.

PART NUMBER: LHK-ATOM.
LED's: Philips Luxeon Z ES Gen2, (125lm/w)
LED QUANTITY: H/L 10pcs, Single Beam 6pcs.
POWER: L/25w H/25w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:2.0A±0.2A, H:2.0A±0.2A.
WEATHERPROOF: IP67 Water and Dust Tight.
COLOUR OPTIONS: Pure White + 2x Included "DIY" Gold and Blue Colour Films.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8/H9, H11, HB3 9005, HB4 9006, H10, 9012, H16, PXS24W/5202, PSX26W/P13W.
KIT CONTENTS: 2x bulbs, 2x Drivers, 2x Colour Film, 1x Manual.
DELIVERY COSTS: Price Includes Overnight Express 1-2 Working Days in Australia or International Air Express Delivery

Buy The ATOM LED Kit Safely Online Today!

LHK-ATOM
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

Trail Blazer LED Conversion Kits

Features
Specifications

Overview for The Trail Blazer LED Kits.

Application: Good Budget Kit. Built-In Drivers and Advanced Fan-less Technology. Compact and Versatile!
BULB SIZES and Available Types HERE
Fan-Less: Fan-less for easy fitting and good heat conduction.
DRIVER: Internal Built-In Driver. RF Free, EMC.
COOLING: Advanced Fan-Less Conduction Technology for Long Life and LED Integrity. Aviation Grade 6063 Aluminum for Maximum Heat Dissipation and Cooling Efficiency.
BEAM: Precision Optical Control.
ORIENTATION: Double Sided LED's for Better Illumination.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight Connector.
BRIGHTNESS: Bright – Up to 8,000 Lumen, L/4000lm, H/4000lm,(2000lm per single bulb).

PART NUMBER: LHK-TRAILBLAZER.
LED's: Seoul Y19 CSP Chips. High Quality and Long Life.
LED QUANTITY: H/L 12pcs, Single Beam 6pcs.
POWER: L/25w H/25w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:1.6A±0.2A, H:1.6A±0.2A.
WEATHERPROOF: IP65 Water and Dust Proof.
COLOUR OPTIONS: Pure White.
AVAILABLE BULBS and SIZES: H1, H3, H4 H/L, H7, H8, H9, H10, H11, HB3 9005, HB4 9006, H10, 9012, H16, 9004 HB1 H/L, 9007 HB5 H/L, H13 H/L, PXS24W/5202, PSX26W/P13W, 880, 881.
KIT CONTENTS: 2x bulbs, 2x Colour Film, 1x Manual.
DELIVERY COSTS: Price Includes Overnight Express 1-2 Working Days in Australia or International Air Express Delivery

Buy The TRAIL BLAZER LED Kit Safely Online Today!

LHK-TRAILBLAZER
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

LED Conversion Kit for Projector Lens Headlights

Features
Specifications

Overview for LED Bulbs for Projector Lights.

Application: Projector Lens Headlights.
They use the CREE XHP70 LED's which produce 150lm/w, SEE DETAILS HERE.
Perfect Beam Patterns When used in Projector Lens Headlight.
BULB SIZES and Available Types HERE
Fan: High Grade Japanese Fan.
DRIVER: External Drivers. RF Free, EMC.
BEAM: Perfect Cut-offs when used with projector lens headlights.
ORIENTATION: Specially Designed Single Sided.
BRIGHTNESS: 6000 Lumen. L6000lm H/6000lm, (3000lm per bulb).

PART NUMBER: LHK-PROJECTOR.
LED's: USA Made CREE XHP70.
LED QUANTITY: 1pc per bulb.
POWER: L/30w H/30w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:2.8A±0.2A, H:2.8A±0.2A.
WEATHERPROOF: IP67 Water and Dust Proof.
COLOUR OPTIONS: Pure White.
AVAILABLE BULBS and SIZES: H7, H8, H9, H11, HB3 9005, HB4 9006, 9012, D1S, D1R, D1C, D2S, D2R, D2C, D3S, D3R, D3C, D4S, D4R, D4C.
KIT CONTENTS: 2x bulbs, 1x Manual.

Buy Projector Lens LED Kits Safely Online Today!

LHK-Projector
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.

V8 Series LED Conversion Kits

Features
Specifications

Overview for the V8 Series LED Kits.

Application: The V8 Series are the cheapest of the led kits we offer, they are pretty much out-dated now, but are still ok for those on a really tight budget. The fans are Japanese, they are bright, and will still perform much better than a $80 kit some vendors offer.
BULB SIZES and Available Types HERE
Fan-Less: Fan-less and Non-Polarity Sensitive, (for positive and negatively switched vehicles).
DRIVER: Internal Built-In Driver. RF Free, EMC.
COOLING: Fan + Conduction Technology. Aviation Grade 6063 Aluminum for Heat Dissipation and Cooling Efficiency.
BEAM: 360° Fully Adjustable Beam Rotation Technology.
ORIENTATION: Double Sided LED's for precision optics.
CONNECTION: Easy Fit “Plug and Play” OEM Headlight

PART NUMBER: LHK-V8-Series.
LED's: CREE XHP50, (149lm/w)
LED QUANTITY: H/L 4pcs, Single Beam 2pcs.
POWER: L/40w H/40w.
VOLTAGE: 9-32v Wide voltage, 12v/24v Compatible for Cars, Trucks, and Motorcycles.
CURRENT DRAW: L:3.0A±0.2A, H:3.0A±0.2A.
WEATHERPROOF: IP67 Water and Dust Tight.
AVAILABLE BULBS and SIZES: H4 H/L, H7, H8/H9, H11, HB3 9005, HB4 9006, H10, 9012, H16, PXS24W/5202, PSX26W/P13W.
KIT CONTENTS: 2x bulbs, 2x Colour Film, 1x Manual.
DELIVERY COSTS: Price Includes International Air Express Delivery Worldwide 3-5 Working Days.
WARRANTY: 1yr Limited Warranty.

Buy V8 Series LED Kits Safely Online Today!

LKH-V8 Series
Price is for a "Kit" (2x bulbs per kit) and Includes GST and Delivery Costs Worldwide.
